Fox Brake Upgrade


  • Please log in to reply
2 replies to this topic

#1 OFFLINE   OTA.com

OTA.com

    Team Shelby New Member

  • Members
  • Pip
  • 3 posts
  • Joined 28-March 06

Posted 28 March 2006 - 11:54 AM

After reading several reports of rotor failure on 13" Cobra rotors when used with the 2000 Cobra R Brembo calipers as seen in this picture:

Posted Image

I decided to be proactive and upgrade my rotors. The theory I have heard most often concerning the failures is that when using the standard Cobra PBR caliper, there isn't as much stress on the rotor because the caliper is a 2 piston sliding design and it will move with the rotor. The rotor will move when there is some play in the hubs. When using the fixed Brembo 4 piston caliper, the caliper is stationary and will not move with a rotor. The fix I settled on is to replace the one piece rotors with a two piece rotor with aluminium hats. The aluminium will flex and lessen the stress on the rotor.

On another board, I found a group buy on a custom machined hat to allow the use of an off-the-shelf Colman racing rotor with the Stock Mustang spindle and hub along with the Cobra or Brembo calipers. I ordered the parts as well as some NAS fastners from Coast Fabrication.

Here are the parts:

Posted Image

In addition to the rotors, I also added some brake ducts. I purchased them from Livermore performance. They came complete with all mounting hardware. I know there are many who make their own, but I do not have the fab skills or the proper tools, so buying them was my best bet. Here are the ducts:

Posted Image

Here is my existing setup with the stock Brembo one piece rotors:

Posted Image

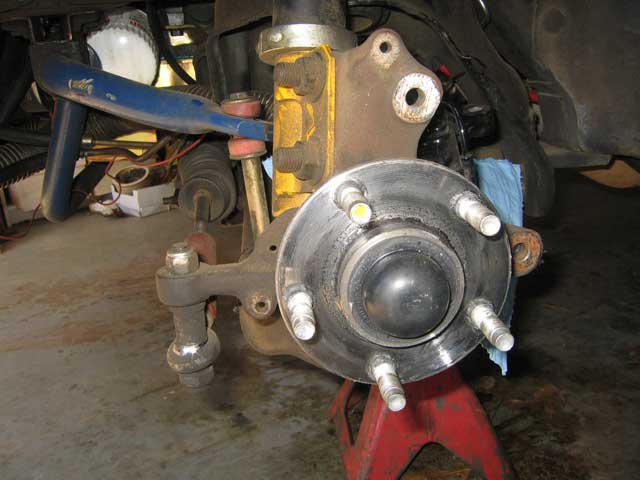

The first step was to remove the calipers and rotors and clen up the hub/spindles:

Posted Image

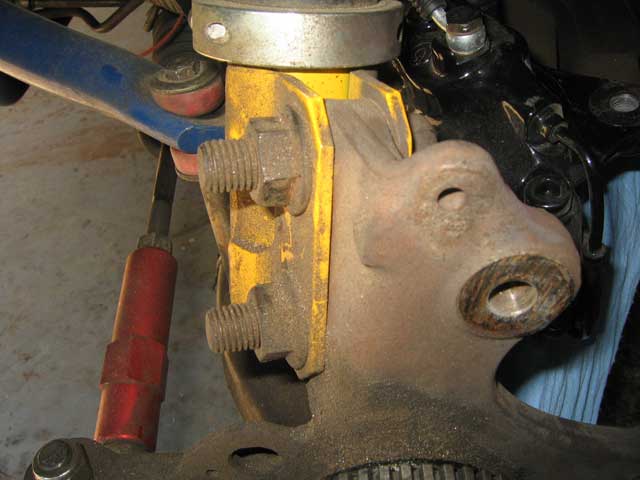

I also found the the strut to spindle pinch bolts interfered with the new brake ducts requiring me to turn them around. I changed one bolt at a time to prevent the spindle from shifting on the strut. Here is a picture of the bolts in the original position:

Posted Image

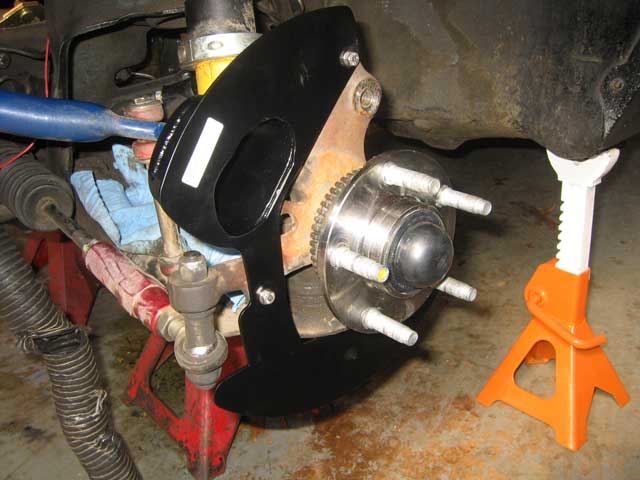

Once this was accomplished, I mounted the brake ducts with the supplied hardware:

Posted Image

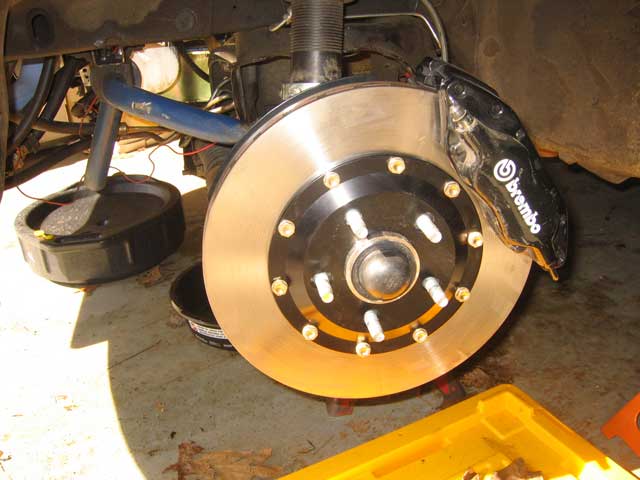

I bolted everything up and this is the finished product:

Posted Image

I got the chance to try them out at Road Atlanta last weekend and everything worked great. I used the brakes harder than ever before and I had no issues, which I guess is a good thing!
